JMR Electronics Mac Pro TB2 8-Bay RAID Enclosure

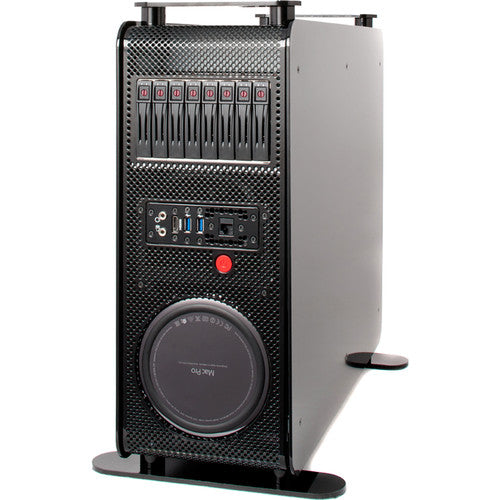

The ATTO 6 Gb/s SAS RAID controller card comes installed in one of the four PCIe slots and provides RAID 0, 1, 4, 5, and 6 modes for your SAS- and SATA-based drives. Drive carriers are included to quickly mount your 2.5" hard drives and SSDs into the eight hot-swappable drive bays. Once drives are installed and configured in a RAID mode, the enclosure can deliver data at a rate of up to 1200 MB/s to the Mac Pro.

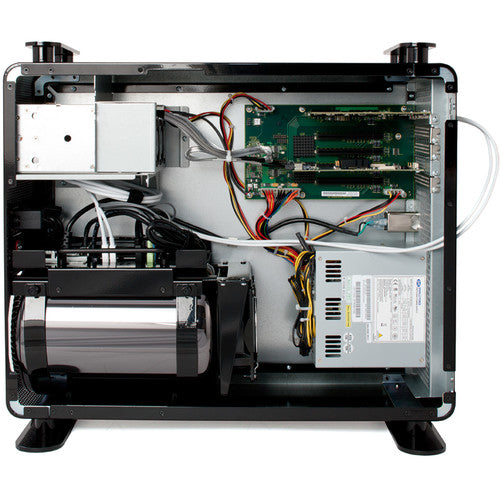

This JMR enclosure supports full-height, full-length PCIe cards, and each of the PCIe slots operates mechanically at x16 and electrically at x4. You can use the three remaining PCIe slots to add Fiber-channel adapters, 10GbE networking cards, video capture cards, audio interface cards, dedicated graphics cards, RED Rocket-X cards, and more for your Apple Mac Pro.

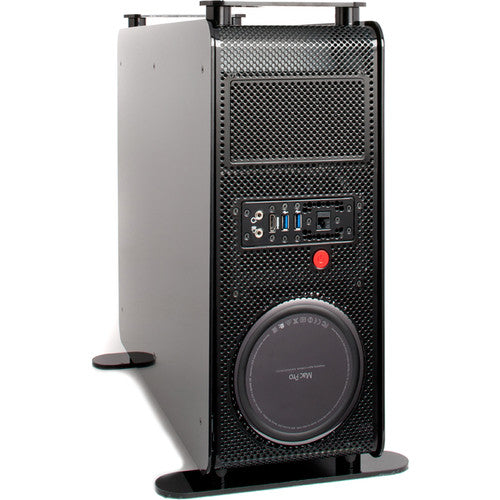

Once installed within the enclosure, the Mac Pro's on/off power button and I/O ports are controlled via a pass-through design. JMR has outfitted this enclosure with an I/O panel that can be mounted to the front or back of the case. This panel features two USB 3.0 ports, one HDMI port, one Gigabit Ethernet port, one mic port, and one headphone port. Aside from these ports, four 20 Gbps Thunderbolt 2 ports are available, so you may daisy-chain other Thunderbolt devices to your Apple Mac Pro. Additionally, the JMR enclosure sports a forced-air cooling solution that keeps your Mac, PCIe cards, and drives running smoothly.
- The four PCIe slots are powered using two independent Thunderbolt 2 bridge circuits, each of which runs at 20 Gb/s. One Thunderbolt 2 bridge drives two of the PCIe slots, while the other Thunderbolt 2 bridge circuit powers the other two. When connecting to a Mac Pro, users will need to use two of the Lightning XQ's Thunderbolt 2 ports and two Thunderbolt 2 cables, each of which will connect two one of the Mac Pro's Thunderbolt 2 ports, with two total ports being used
- So that your bandwidth may be maximized, please ensure that each Thunderbolt 2 cable is connected to a separate Thunderbolt 2 bridge circuit on your Mac Pro. The 2013 Mac Pro comes equipped with six Thunderbolt 2 ports that are powered by three Thunderbolt 2 bridge circuits, or two ports per circuit. If multiple peripherals are connected to one circuit, then the bandwidth will be shared. Also, please bear in mind that each grouping of two PCIe slots on the Lightning XQ share one Thunderbolt 2 circuit. If only one card is installed on a dedicated circuit, it will receive the full 20 Gb/s bandwidth of that circuit, but if a second card is installed, the bandwidth will be shared, with each card receiving 10 Gb/s. Likewise, if only one card is installed on each dedicated circuit, they will both receive the full 20 Gb/s bandwidth of each circuit. Additionally, if only one Thunderbolt 2 cable is used to connect this system to your Mac Pro, then only two of the four PCIe slots will be available
- SAS/SATA host bus adapters and RAID controller cards
- Video capture cards
- Fiber channel host bus adapters and RAID controller cards
- Audio interface cards
- 10GbE network adapter cards
- Graphical Processing Units (GPUs), RED Rocket-X cards
