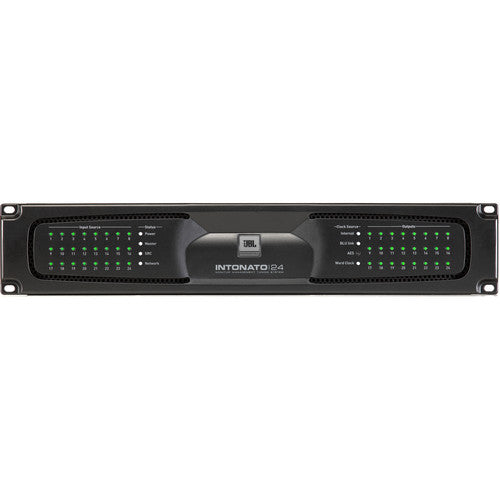

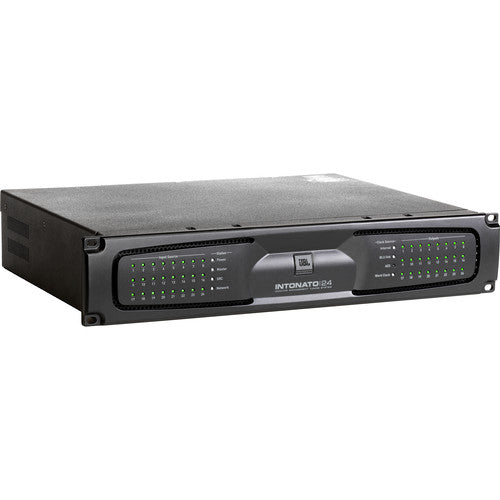

JBL Intonato 24
The Intonato 24 pairs with JBL 7 Series studio monitors and are designed for immersive audio production in control rooms of any size, but will work with any monitor speaker. Intonato 24 works with any passive or powered speaker. In addition, the HARMAN BLU link network protocol allows it to be digitally networked with Crown power amplifiers.

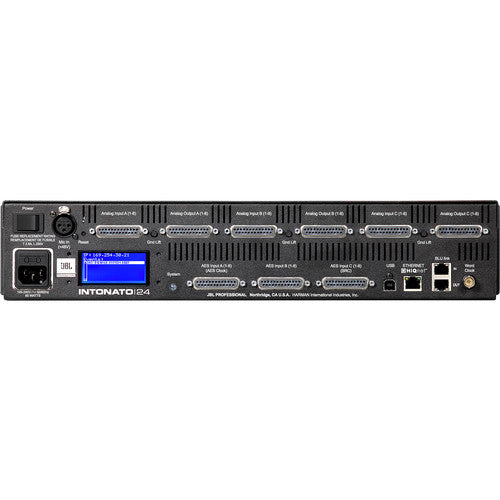

Built with 24 analog inputs and outputs and 24 AES/EBU inputs on 25-pin D-Sub connectors, the monitor management tuning system requires breakout cables. Included software puts the system's monitoring features at your fingertips, and the separately available Desktop Controller provides tactile access to the key functions of the Intonato 24.
The Intonato 24 features an automated speaker calibration process that "tunes" each speaker to compensate for speaker placement and room acoustics, delivering a neutral response to the mix position—even in less-than-ideal work spaces.
- Compatible with all professional studio monitors
- Input connections for 24 analog, AES /EBU inputs; up to 256 channels of networked audio in HARMAN BLU link or Dante format (with optional BLUDAN interface)
- Software-controlled analog input sensitivity switches, level indicators, and gain trims
- Output connections include 24 analog outputs to powered speakers and power amplifiers; BLU link output allows networked connection to HARMAN Crown power amplifiers
- Selectively monitor via one or more monitoring systems of up to 24 speakers
- Volume, Mute, and Dim controls, plus individual speaker Mute and Solo options
- Automated Speaker Calibration with included microphone precisely balances, tunes, and aligns all speakers to deliver greater accuracy to the mix position in any room; 12 bands of room EQ, delay, and level per speaker
- Per-speaker, 8-band user EQ allows standard and customized response curves such as X-Curve and compensation for perforated screen transmission loss
- Sophisticated subwoofer integration for LFE channels and bass management
- Variable audio/video sync delay allows compensation for video display latency
- Stereo aux out with dedicated level control, EQ, and talk back system allows an independent feed to be sent to talent or a remote "green room"
- Create, store, and instantly recall project-specific configurations and speaker tunings

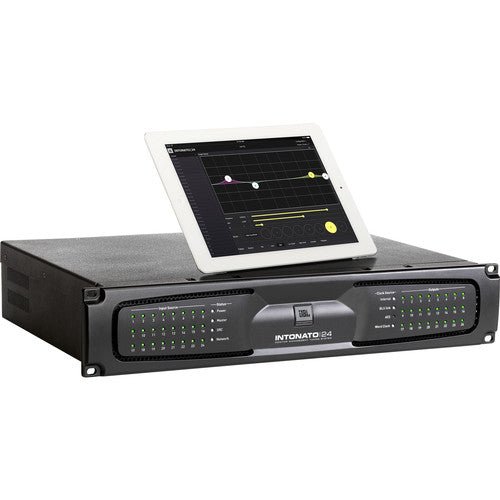

- Intuitive setup and control with included Macintosh, Windows, and iOS/Android tablet software or optional Intonato Desktop Controller
- Low-noise fan for quiet operation
