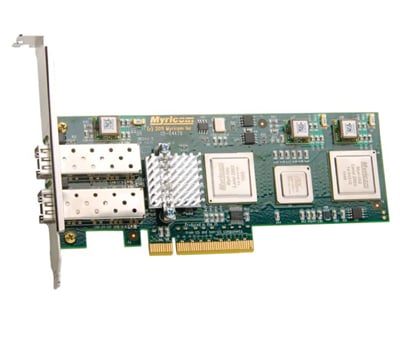

Myricom 10G SFP+ PCIe Card
Ports 10G-PCIE2-8C2-2S: Dual 10gb/s Ethernet
Form Factor
- Low-profile Pci Express X8 Add-in Card
- 68.9mm X 167mm Exclusive Of The Pci Faceplate
- Total Thickness: 22mm
- Weight: 101.6g (0.224lb), Inclusive Of Standard Pci Faceplate
Bus Interface Pci Express Gen2 (5 Gt/s) X8
Optional Pci Express Capabilities Supported Advanced Error Reporting, Function-level Reset, Device Serial Number, Up To 16 Outstanding Read Requests, Up To 2kb Maxpayloadsize For All Packet Types, Msi And Msi/x, Smbus Access.
Compliance
- Pci Express Card Electromechanical Specification Rev. 2.0
- Pci Express Base Specification Rev. 2.0 At 5gt/s Or 2.5 Gt/s
Ethernet Specifications:
Throughput
- ~9.9 Gb/s With A 9kb Mtu Or ~9.5 Gb/s With A 1500b Mtu Per Port
Ethernet Frame
- 1500 Byte Or 9000 Byte Mtu
Compliance
- Ieee 802.3x
Stateless Offloads
- Ip And Tcp Checksum Offload, Send And Receive
- Tso (tcp Segmentation Offload, Also Known As Large Send Offload)
- Lro (large Receive Offload)
- Rss (receive-side Scaling)
- Interrupt Coalescing
- Multicast Filtering
Power
- Direct Attach: Typical-14.5w, Maximum-16.0w
- Sfp+ Sr/lr: Typical-14.7w, Maximum-16.2w
- Sfp+ Lrm: Typical-16.2w, Maximum-17.7w
