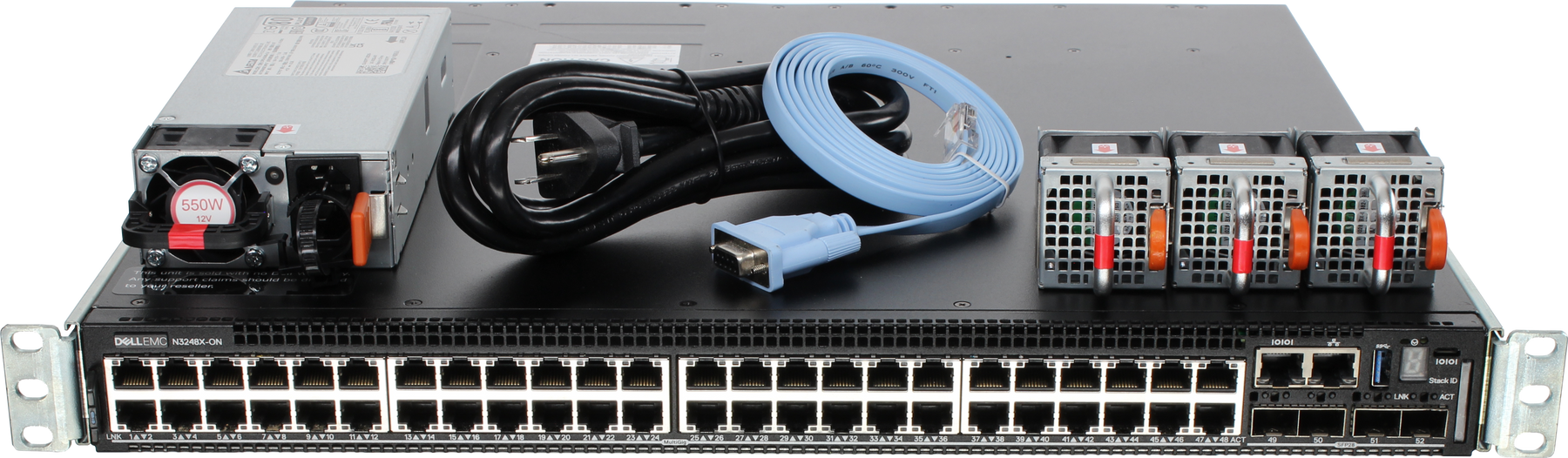

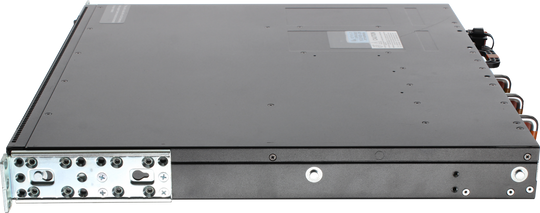

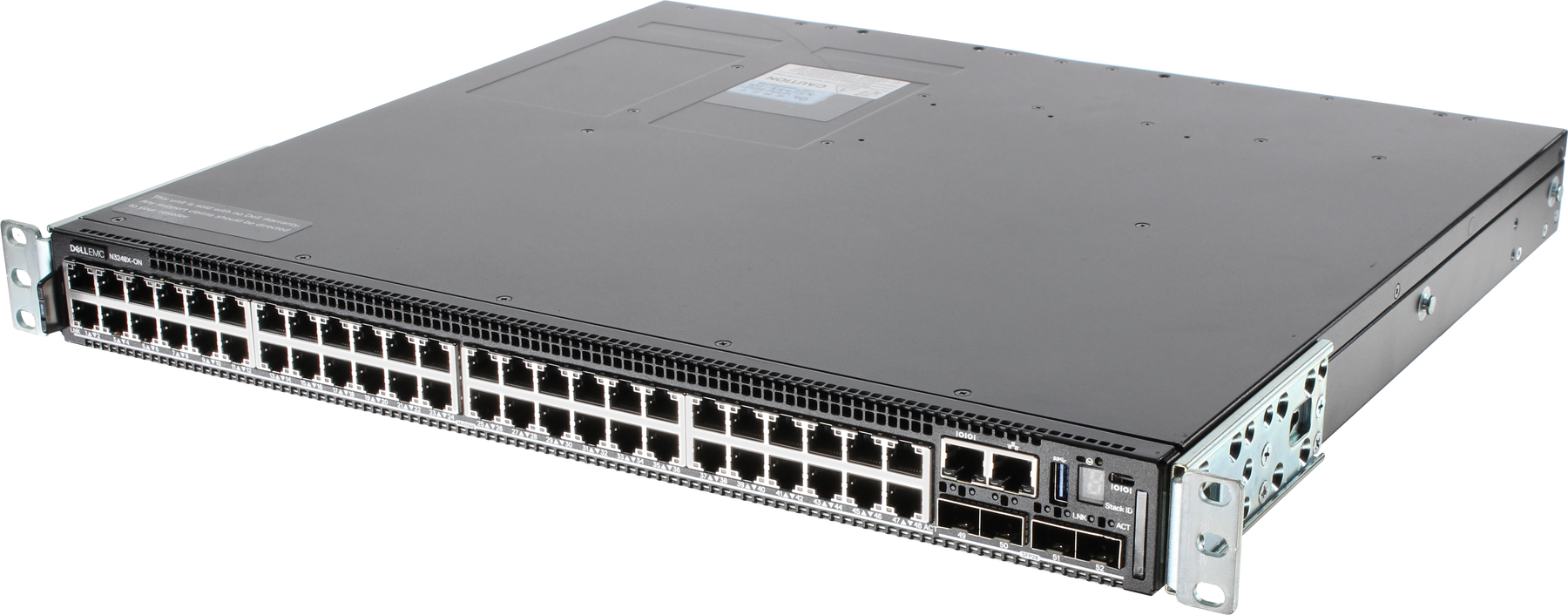

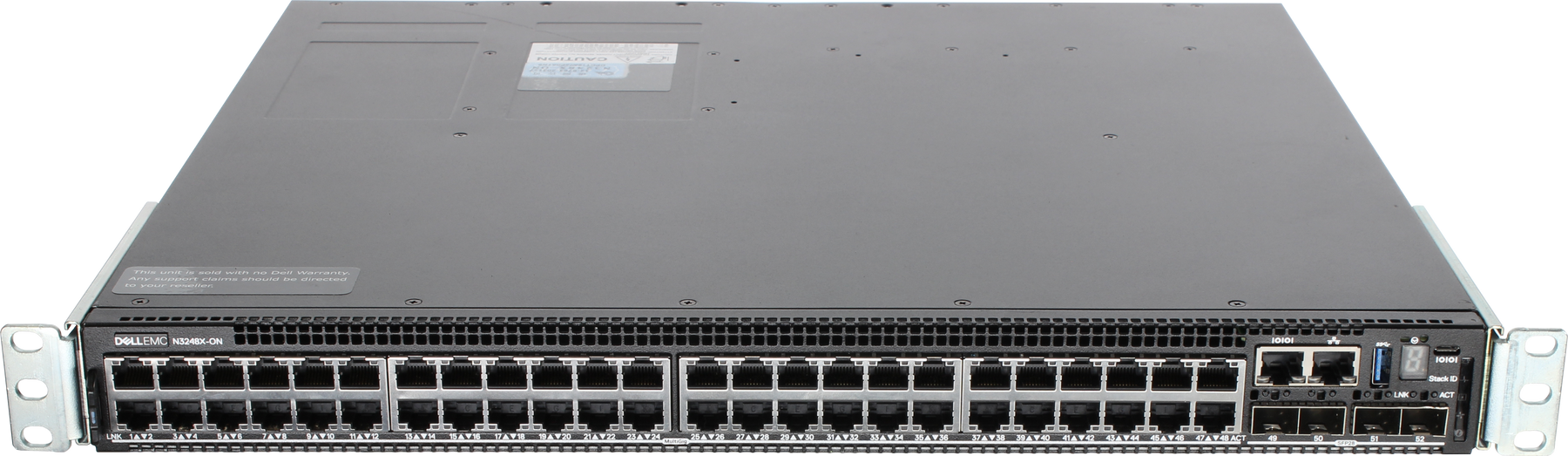

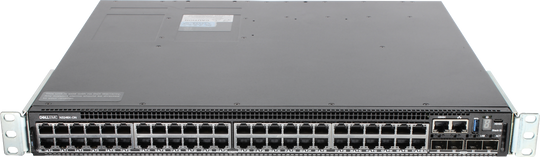

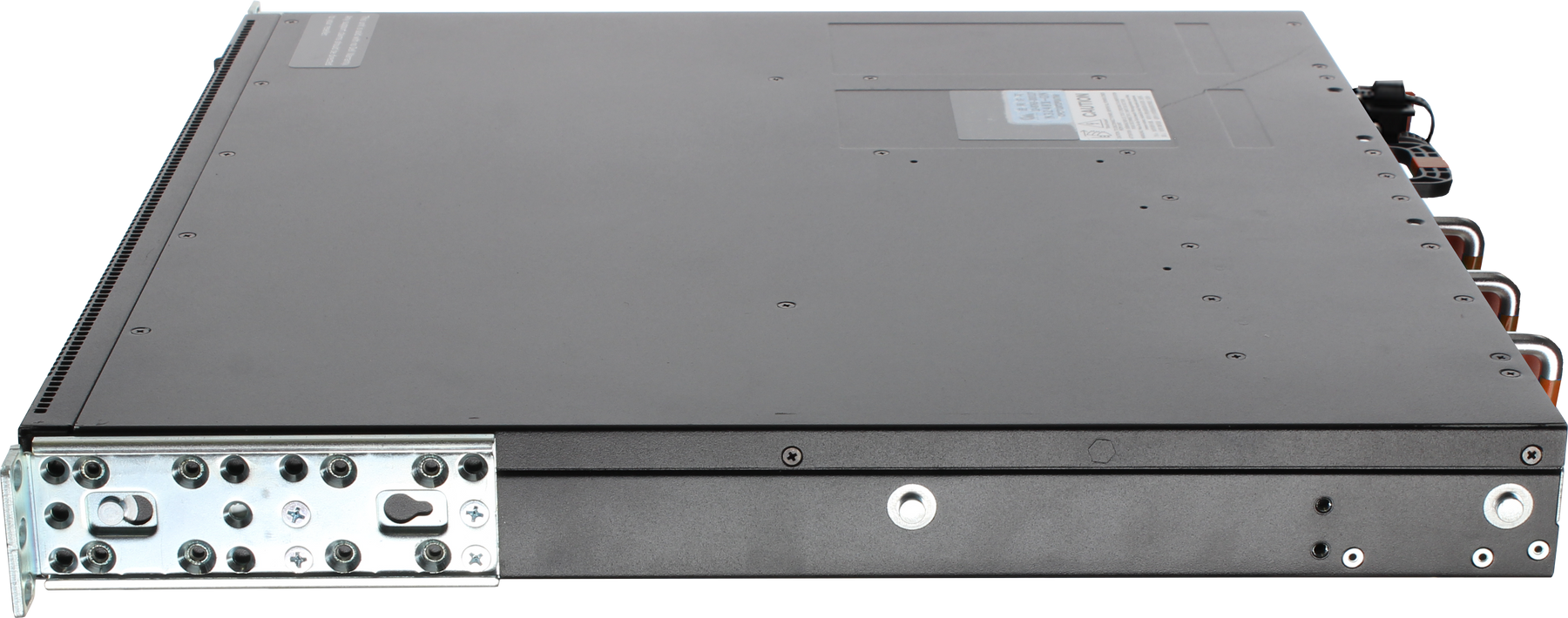

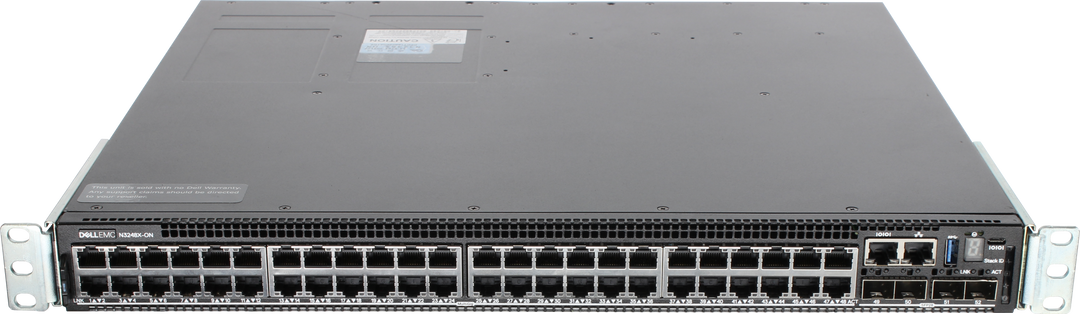

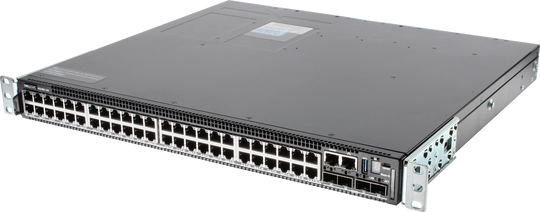

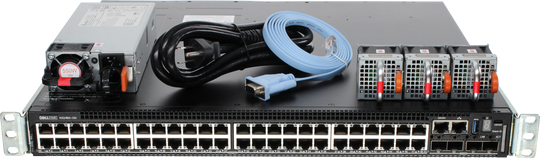

Dell Networking Switch
- Ports: 1/10GbE Base-T
- Primary Port Quantity: 48 ports
- Uplink Ports: 100GbE QSFP28
- Uplink Port Quantity: 2 ports
- Secondary Uplink Port Quantity: 4 ports
- Secondary Uplink Ports: 25GbE SFP28
- Hot-swappable AC Power Supply: Redundant 550W
- Networking Model: N3248TE-ON
- Airflow: Standard Airflow / Reverse Airflow
- Default Operation System: Dell OS6 / SONiC
- PoE: NO
- Power Supply: 1 x hot-swappable 550W AC PSU.
- Transceivers: Not Included
-
Switches:
N3248X-ON IO/PS Airflow, with OS6: 48x RJ45 10M/100M/1G/2.5G/5G/10G auto-sensing ports, 4x 25G SFP28 ports, 2X 100G QSFP28 ports, 1x 550W AC PSU included
N3248X-ON PS/IO Airflow, with OS6: 48x RJ45 10M/100M/1G/2.5G/5G/10G auto-sensing ports, 4x 25G SFP28 ports, 2X 100G QSFP28 ports, 1x 550W AC PSU included
-
Physical:

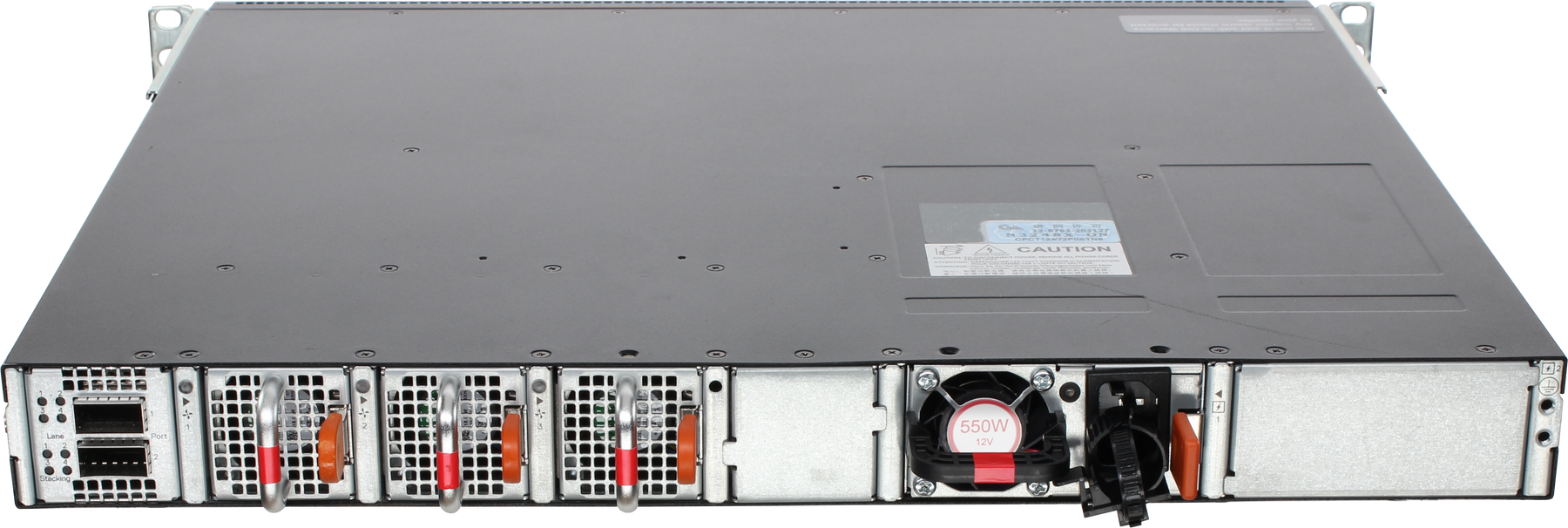

2 integrated rear 100GbE QSFP28 stacking ports
Out-of-band management port (10/100/1000BASE-T)
USB (Type A) port for configuration via USB flash drive
MicroUSB (Type B) console port
RJ45 console port with RS232 signaling
Auto-negotiation for speed and flow control Auto-MDI/MDIX, port mirroring
Flow-based port mirroring Broadcast storm control
Energy-Efficient Ethernet per port settings
Redundant variable speed fans
Air flow: I/O to power supply
Power supply: Integrated 550W (N3248X-ON)
Dual firmware images on-board
Switching engine model: Store and forward
-
Chassis:
Size (1RU, H x W x D): 1.71 in x 17.09 in x 15.75 in (power supply/fan tray handle adds add’l 1.18 in)
Approximate weight (Switch with 1 PSU installed): 16.1lbs/7.3kg (N3248X-ON)
2-post rack mounting kit
-
Environmental:
Power supply efficiency: 87% or better in all operating modes
Max. thermal output (BTU/hr): 1637 (N3248X-ON)
Power consumption max (watts): 480 (N3248X-ON)
Operating temperature: 32° to 113°F (0° to 45°C)
Operating relative humidity: 95%
Storage temperature: –40° to 158°F (–40° to 70°C)
Storage relative humidity: 95%
-
Performance:
CPU memory: 4GB
SSD: 8GB
Packet buffer memory: 32MB (N3248X-ON)
Switch fabric capacity (full-duplex): 1560Gbps (N3248X-ON)
Forwarding rate: 2167Mpps (N3248X-ON)
Line-rate Layer 2 switching: All (non-blocking)
Line-rate Layer 3 routing: All (non-blocking)
-
Safety and emissions:
Australia/New Zealand: ACMA RCA Class A
Canada: ICES Class A; cUL
China: CCC Class A; NAL
Europe: CE Class A
Japan: VCCI Class A
USA: FCC Class A; NRTL UL; FDA 21 CFR 1040.10 and 1040.11
Eurasia Customs Union: EAC Germany: GS mark
Product meets EMC and safety standards in many countries inclusive of USA, Canada, EU, Japan, China. For more country-specific regulatory information, and approvals, please see your Dell Technologies representative
N-Series products have the necessary features to support a PCI compliant network topology. -
RoHS:
Product meets RoHS compliance standards in many countries inclusive of USA, EU, China, and India. For more country-specific RoHS compliance information, please see your Dell Technologies representative.
EU WEEE
EU Battery Directive REACH
