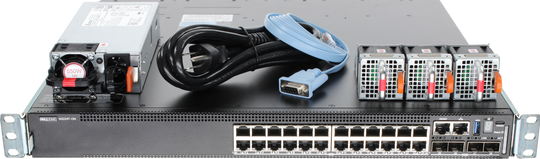

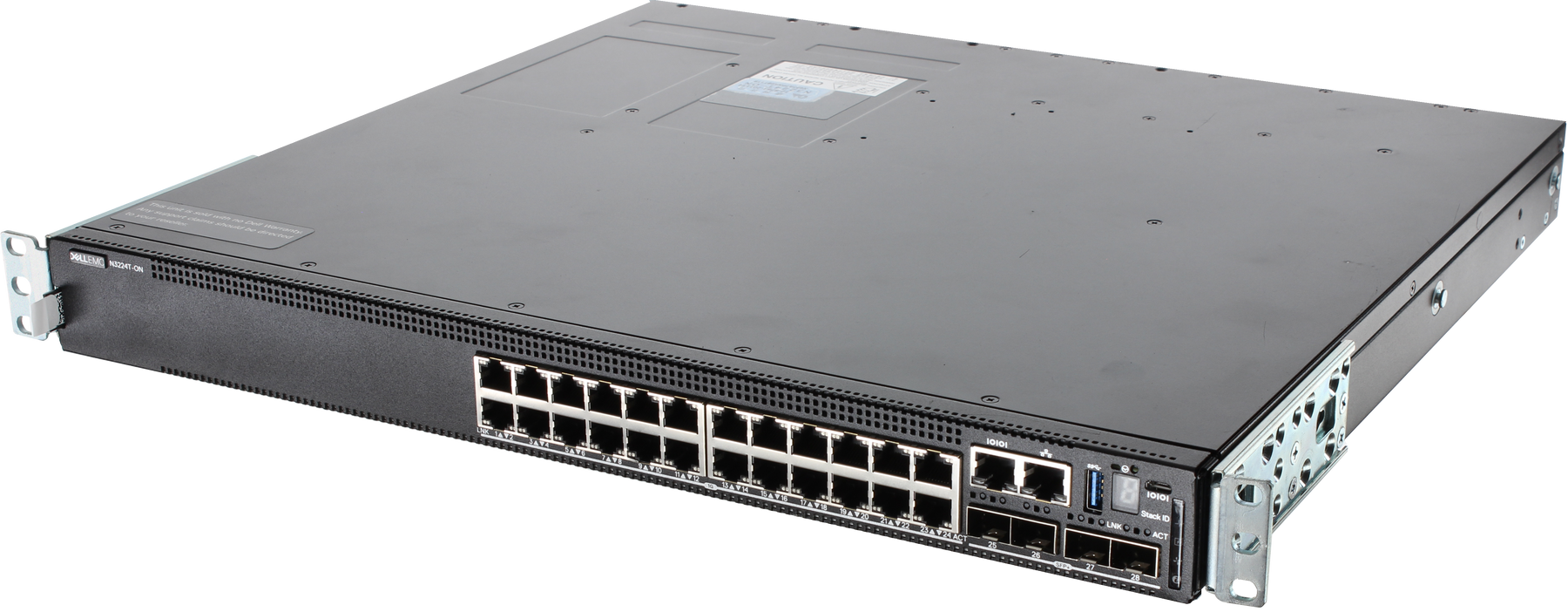

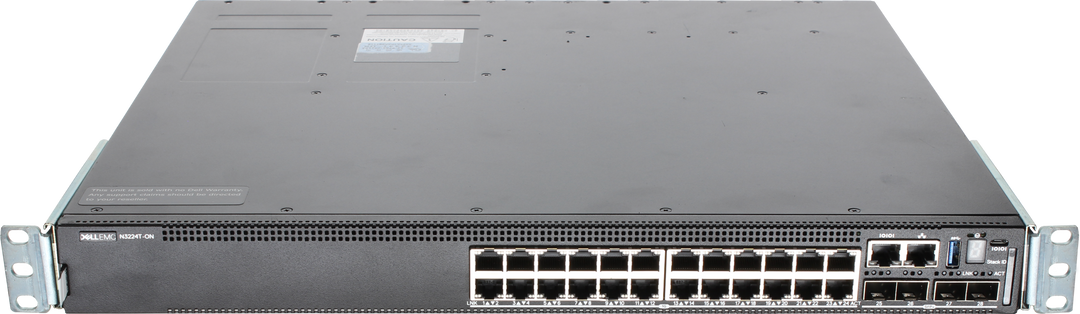

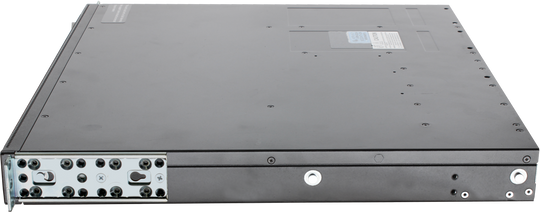

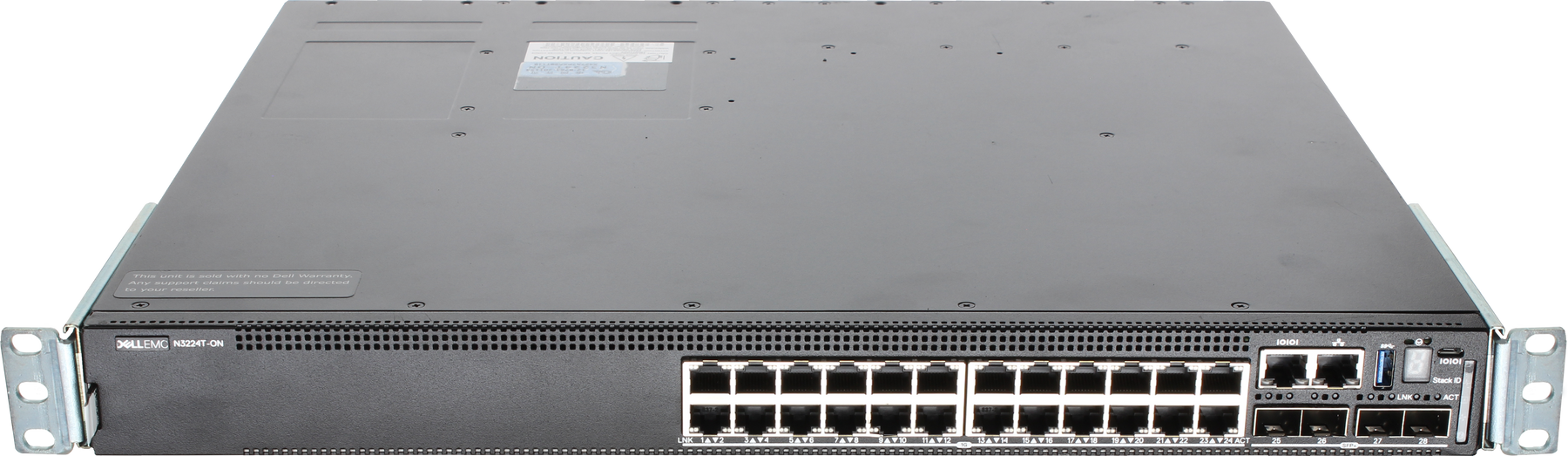

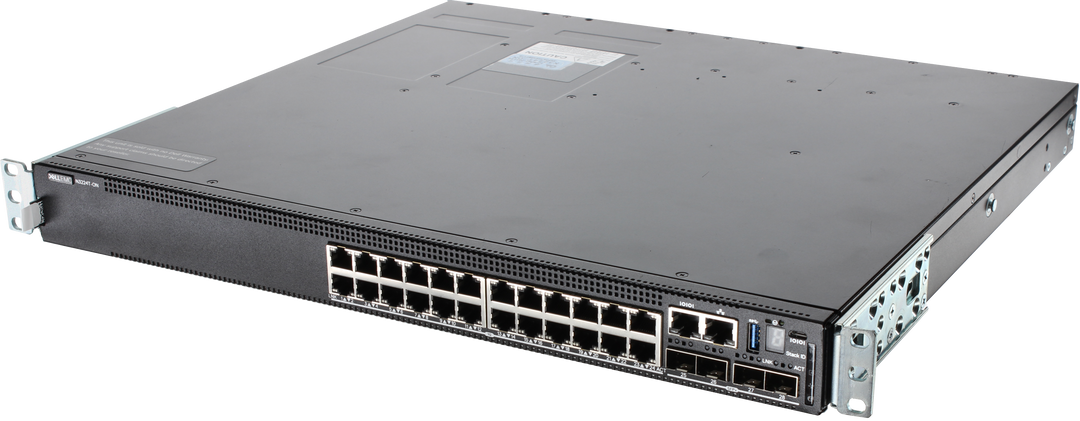

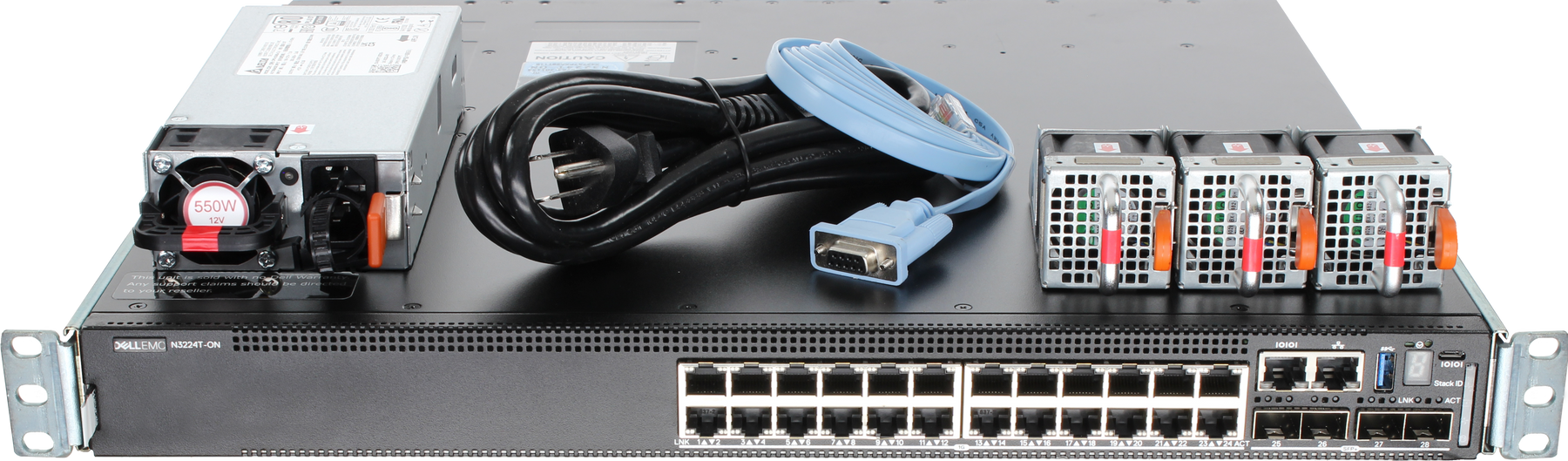

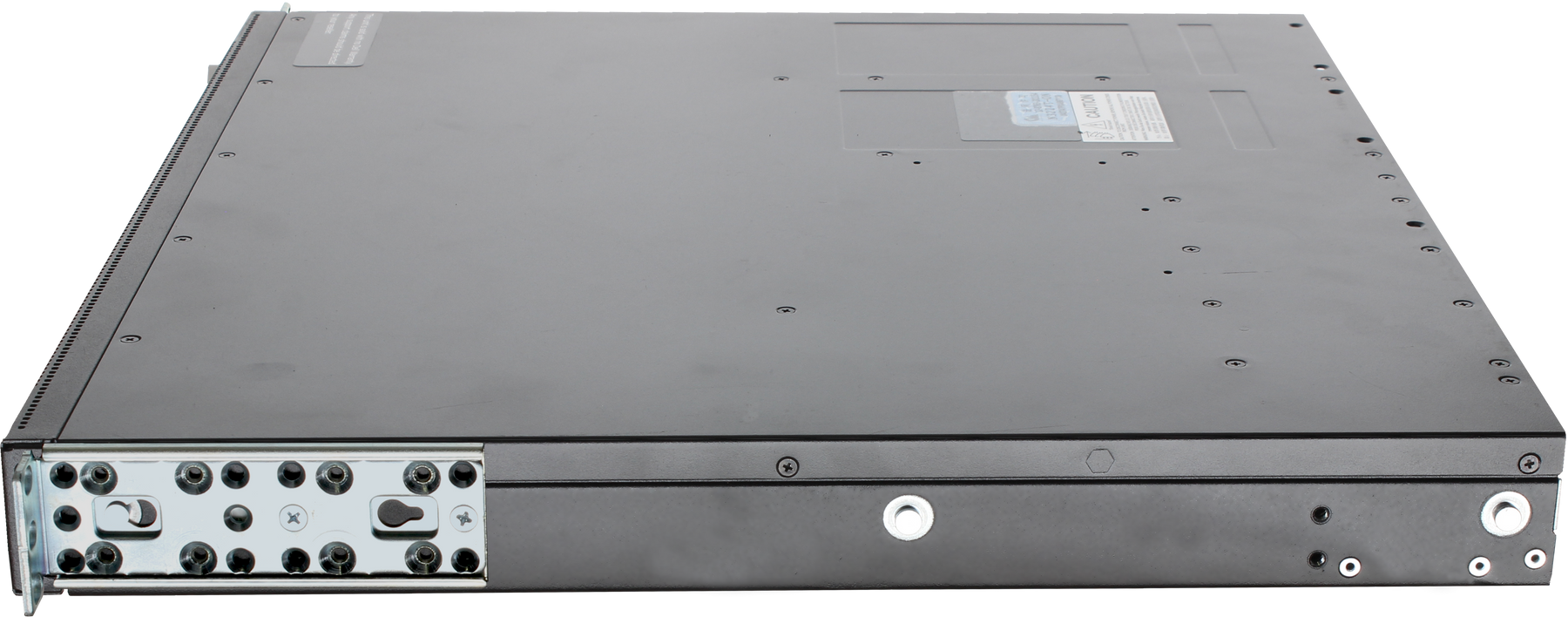

Dell N3224T-ON Networking Switch
- Ports:10/100/1000 Base-T
- Primary Port Quantity:24 ports
- Uplink Ports:100GbE QSFP28
- Uplink Port Quantity:2 ports
- Secondary Uplink Port Quantity:4 ports
- Secondary Uplink Ports:1/10GbE SFP+
- Hot-swappable AC Power Supply:redundant 550W
- Networking Model:N3224T-ON
- Airflow:Standard Airflow / Reverse Airflow
- Default Operation System:Dell OS6
- PoE:NO
- Power Supply:1 x hot-swappable 550W AC PSU.
- Transceivers:Not Included
-
Switches:
N3224T-ON IO/PS Airflow, with OS6: 24x RJ45 10/100/1000Mb auto-sensing ports, 4x 10G SFP+ ports, 2X 100G QSFP28 ports, 1x 550W AC PSU included
N3224T-ON PS/IO Airflow, with OS6: 24x RJ45 10/100/1000Mb auto-sensing ports, 4x 10G SFP+ ports, 2X 100G QSFP28 ports, 1x 550W AC PSU included -
Physical:

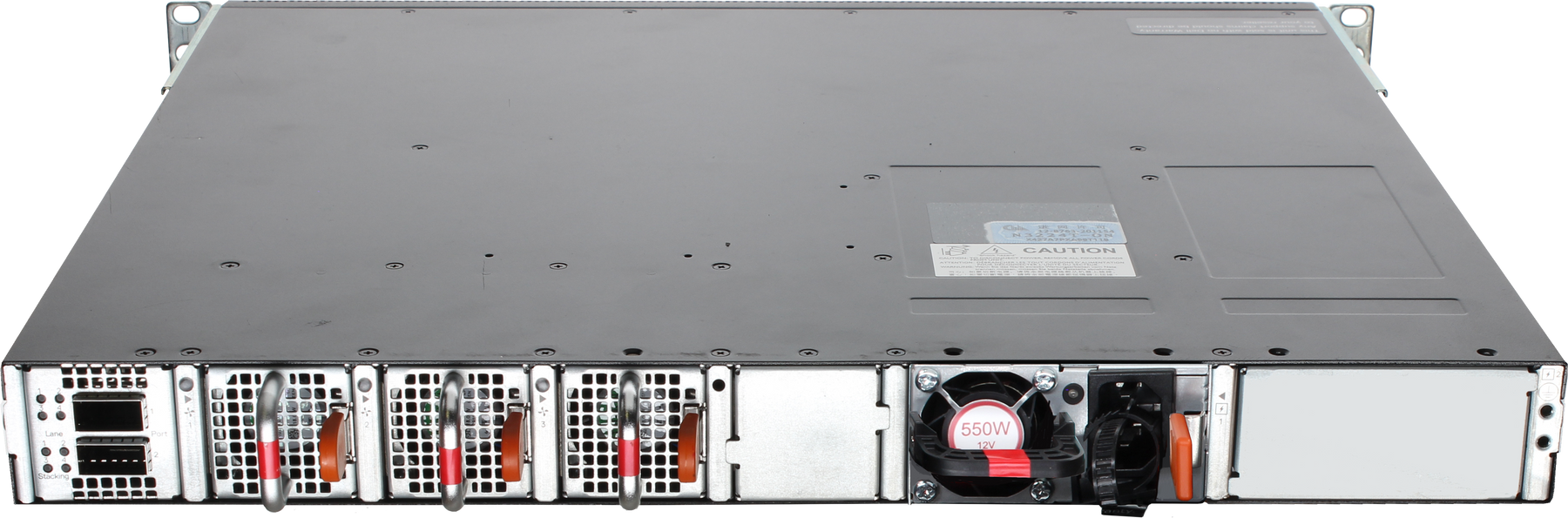

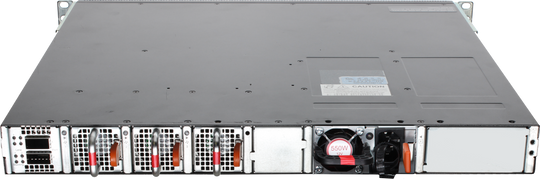

2 integrated rear 100GbE QSFP28 stacking ports
Out-of-band management port (10/100/1000BASE-T)
USB (Type A) port for configuration via USB flash drive
MicroUSB (Type B) console port
RJ45 console port with RS232 signaling
Auto-negotiation for speed and flow control Auto-MDI/MDIX, port mirroring
Flow-based port mirroring Broadcast storm control
Energy-Efficient Ethernet per port settings
Redundant variable speed fans
Air flow: I/O to power supply
Power supply: Integrated 550W (N3224T-ON)
Dual firmware images on-board
Switching engine model: Store and forwarde
-
Chassis:
Size (1RU, H x W x D): 1.71 in x 17.09 in x 15.75 in (power supply/fan tray handle adds add’l 1.18 in)
Approximate weight (Switch with 1 PSU installed): 13.75lbs/6.24kg (N3224T-ON)
-
Environmental:
Power supply efficiency: 87% or better in all operating modes
Max. thermal output (BTU/hr): 686 (N3224T-ON)
Power consumption max (watts): 201 (N3224T-ON)
Operating temperature: 32° to 113°F (0° to 45°C)
Operating relative humidity: 95%
Storage temperature: –40° to 158°F (–40° to 70°C)
Storage relative humidity: 95% -
Performance:
CPU memory: 4GB
SSD: 8GB
Packet buffer memory: 8MB (N3224T-ON)
Switch fabric capacity (full-duplex): 528Gbps (N3224T-ON)
Forwarding rate: 733Mpps (N3224T-ON)
Line-rate Layer 2 switching: All (non-blocking)
Line-rate Layer 3 routing: All (non-blocking) -
Safety and emissions:
Australia/New Zealand: ACMA RCA Class A
Canada: ICES Class A; cUL
China: CCC Class A; NAL
Europe: CE Class A
Japan: VCCI Class A
USA: FCC Class A; NRTL UL; FDA 21 CFR 1040.10 and 1040.11
Eurasia Customs Union: EAC Germany: GS mark
Product meets EMC and safety standards in many countries inclusive of USA, Canada, EU, Japan, China. For more country-specific regulatory information, and approvals, please see your Dell Technologies representative
N-Series products have the necessary features to support a PCI compliant network topology.
-
RoHS:
Product meets RoHS compliance standards in many countries inclusive of USA, EU, China, and India. For more country-specific RoHS compliance information, please see your Dell Technologies representative.
EU WEEE
EU Battery Directive REACH
